Clear LCD & touch keys
Read the room temperature and adjust the setpoint directly on the tempered-glass front.
MATTER / AE-5503D
Matter Hydronic Underfloor Heating Thermostat
Water-based comfort, room by room. For hydronic floor heating projects using compatible actuators and control wiring.
BlackWhiteSilverGold
Black finish shown. Four housing colors available.
CONNECTION & TERMINALS
Wiring diagrams for this configuration
Use the drawing for the exact version supplied. These are the original European-configuration connection images provided for this product.

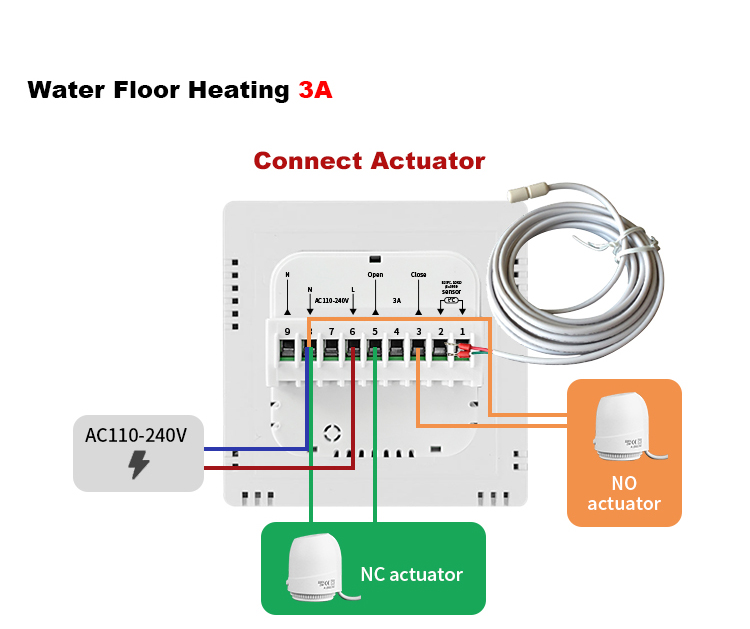

Actuator wiring — NC / NO options
Use the connection that matches the actuator type. NC and NO are alternative examples, not an instruction to connect both.

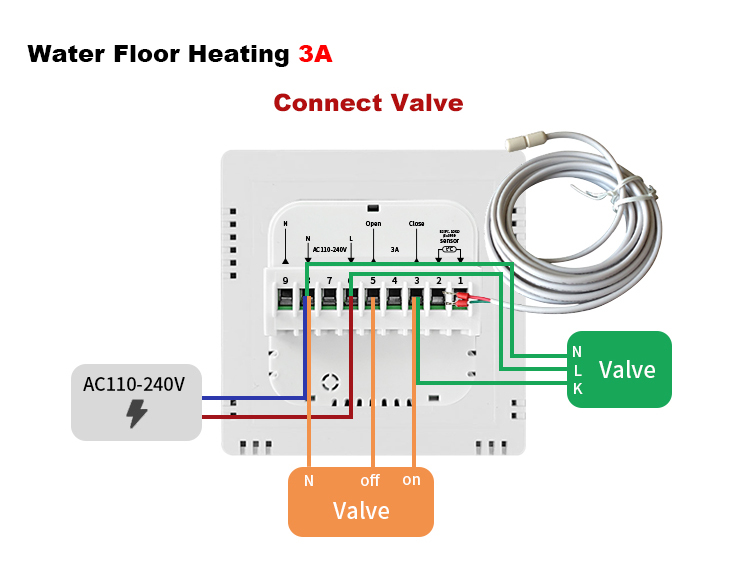

Valve wiring — alternative connections
Choose the arrangement that matches the valve manufacturer’s terminal definitions and the supplied thermostat version.
Before connecting
Confirm actuator or valve voltage, switching current and control type. The thermostat output must match the connected equipment.
Isolate mains power. Wiring must be completed by a qualified installer using the supplied terminal labels and equipment instructions.
THERMOSTAT FEATURES
Everyday comfort, at the wall
Manual or programmed control
The AE-5503D platform supports manual operation and weekly programming: four weekday periods and two off-day periods.
Settings retained
Power-off memory stores settings. Calibration and temperature limits help configure the thermostat for the installation.
Local functions are referenced to the AE-5503D platform manual. Confirm the supplied Matter firmware; local settings are not necessarily exposed in a Matter app.
APPLICATION SETTINGS
Choose how temperature is measured
Internal sensor
Measure the temperature at the thermostat for room comfort.
External sensor
Use the specified external sensor when required by the heating design.
Internal + external
The platform supports combined sensor selection. Configure the floor-temperature warning limit for the floor finish and installation.
External sensor reference: NTC 10 kΩ at 25°C, β = 3950. Confirm the sensor supplied with your selected configuration.
SMART HOME SETUP
Matter control and local settings
In your Matter ecosystem
The current integration focuses on temperature and operating-mode control. Available modes and app layouts depend on the thermostat firmware and chosen platform.
Use the Matter setup code supplied with the thermostat and prepare the compatible controller required by your ecosystem.
Configure on the thermostat
- Weekly program and manual operation
- Temperature calibration and setpoint limits
- Sensor selection for the heating application
- Screen display and timing settings
Request the current ecosystem compatibility list and final sample specification. This page does not imply that all local functions are available in every Matter app.
Technical specifications
AE-5503D platform specifications. The quotation and sample specification define the exact Matter version supplied.
| Series | AE-5503D · Matter edition |
|---|---|
| Application | Hydronic Underfloor Heating |
| Output selection | 3 A hydronic configuration |
| Supply | AC 110–240 V — per the supplied European-configuration wiring diagram |
| Temperature setting | 5–60°C; application and floor limits must be configured appropriately |
| Temperature accuracy | ±1°C |
| Ambient operating temperature | 0–45°C |
| Mounting-hole spacing | 60 mm |
| Construction | Tempered-glass front / PC housing |
| Housing colors | Black, White, Silver, Gold |
| External sensor reference | NTC 10 kΩ at 25°C, B3950; confirm sensor supplied with the selected configuration |
Supply and terminal arrangement follow the newer wiring drawings shown above. The ordered sample and product label define the final electrical configuration.
INSTALLER REFERENCE
Mounting and installation
1. Isolate & open
Switch off the supply and release the front panel as shown.
2. Wire & secure
Follow the correct configuration drawing and secure the rear housing in the wall box.
3. Refit & commission
Refit the front and lower clip. Restore power, configure the sensor and check heating operation before Matter pairing.
Check wall-box clearance and the mechanical drawing for the ordered version. The 60 mm figure is mounting-hole spacing, not the overall product size.
Check these details before ordering
Select the hydronic output configuration for the room’s actuator or wiring center. Match the control voltage and wiring diagram before installation; this thermostat does not directly control the water temperature in a manifold.
For an accurate sample recommendation
Please provide: actuator voltage, normally open / normally closed operation, wiring center and zone arrangement, destination country, preferred ecosystem and quantity.
BUYER GUIDE
Hydronic underfloor heating Matter thermostat questions
How do I choose NC or NO actuator wiring?
Match the wiring diagram to the actuator or valve type and the supplied thermostat version. NC and NO drawings are alternative examples; do not connect both. Confirm actuator voltage, switching current and control type before installation.
Does this thermostat regulate manifold water temperature?
This version controls room heating through compatible actuators or control wiring. It does not directly control the water temperature in a manifold. Confirm the wiring center and zone arrangement with the sample request.
What sensor information should I confirm for a hydronic zone?
The platform supports internal, external or combined sensor selection. The external sensor reference is NTC 10 kΩ at 25°C, B3950. Confirm the supplied sensor and floor-temperature limit for the installation and floor finish.
Does the housing color change the function?
No. Black, white, silver and gold are housing choices. Within the same heating configuration, hardware and software are the same.
Are all functions available through Matter?
No. Temperature and operating mode are the current integration focus. Local schedules, calibration, sensor choices and advanced settings must be checked on the supplied firmware.
Explore the other heating configurations
02 / AE-5503DElectric Underfloor Heating
For electric heating mats and cables, with a configuration selected for the installed load and floor sensor.
Electric underfloor heating Matter thermostat →03 / AE-5503DWall-mounted Boiler Heating
For compatible wall-mounted boiler heating systems, with the switching interface matched to the boiler.
Boiler heating Matter thermostat →Bring Matter to your heating range
Discuss samples, color selection, branded packaging and your target-market requirements with ACMELEC.
Contact us about this thermostatProduct and configuration reference
Published by ACMELEC / Nanjing Ikrey Network Technology Co., Ltd. · Updated .
Use the ordered product label, matching wiring diagram and sample specification to confirm the supplied version. Request the current firmware, tested ecosystem functions and finished-product certification record for your target market.
Samples, MOQ and OEM/ODM terms · Partner model and company reference
